According to the international PE plastic wood market, there are two categories of coextrusion and non-coextrusion. From the aspect of covering layer coverage, we can see that PE plastic wood is divided into the following five types: 1. Coating layer 360 degree all-round coating core layer 2. The slot position of the plate is notched, and the coating layer is not completely coated with the core layer. The coating layer can only cover the upper half of the plate, that is, the core layer can only cover 1 / 2 of the core layer. The cladding layer uses the same plastic-wood material as the core layer, which is equivalent to the first generation plastic wood. Core layer without any direct exposure, that is, the first generation of plastic wood.

best deck material

The first four kinds of wpc have cladding layer, which belongs to co-extruded wpc, and the fifth kind is the simplest first generation plastic wood without any cladding layer. From the application of these five kinds of wpc, we can see the future development direction of co-extruded wpc.

Application performance of various plastic wood products:

The first generation of plastic-wood applications: the first generation of plastic wood, whose surface layer containing wood powder is directly exposed to the harsh environmental climate, is vulnerable to the erosion of strong ultraviolet rays, moisture, various bacteria and fungi, and not only will the color fade easily, The composition and structure of the plate will also be destroyed, or even degraded. In the past few years of actual installation, we have seen that these problems have gradually come to light.

Easy to degrade, powdered because there is no surface coating protection, and some plastic wood use an inappropriate proportion of bonding and antioxidants, resulting in harsh outdoor environment, under strong UV, water erosion, The molecular mixture in the plastic wood degrades, the plate appears the powdering, the aging, the rupture and the rot problem.

The problem of fading and fading is due to the wpc contained in the wood. Even if sufficient antioxidants and UV stabilizers are added in the production process, the wood will still fade when exposed directly to the outdoor environment because of the uncoated layer. What is more, the color difference caused by different degrees of discoloration, such as the shade of the object and the part of the air exposed for a long time, is different, which makes the overall color of the plastic wood uneven.

Mildew and fungi have many cases in the United States due to diurnal temperature differences and seasonal climate, mildew and fungal problems. Without the protection of the coating layer, the wood powder in the plastic wood is exposed to the surface, and all kinds of bacteria and fungi grow in the wet environment, leading to the moldy and long fungi of the plate. Many people try to use all kinds of disinfectant to wash, which not only does not solve the problem, but also because of repeated washing, the water more seeps into the plate, and the problem becomes more serious.

Cracking and fracture cracking are also due to the absence of protective coating, and the UV and water erosion of the plastic-wood molecular mixture lead to the destruction of molecular structure and even degradation of the molecular structure. Some antioxidants and stabilizers, while helpful, do not provide long-term protection. In the external force and its own thermal expansion and contraction of the pull, the plate will appear brittle and cracking.

Scratch, the first generation of plastic wood scratch problem is very serious, in the market, some plastic wood products even scratch with nails on the scratch, after a short period of time, the plate becomes very unattractive.

Without coating protection, stains will easily infiltrate inside the wood flour and leave stains that can not be cleaned.

As regards the application of co-extruded wood without complete shell coating, only parts of the plastic wood are covered by a coating layer, such as the third type of plastic wood mentioned above, which solves some of the problems mentioned above. But at the same time, there are new problems. Plastic wood products without a complete coating of water expansion and bending deformation, which can block ultraviolet rays from above, can reduce the degree of fading in a certain period of time. It can also reduce the problem of scratches and stains. However, because the coating layer and core layer are made of different materials, the coating layer is advanced engineering plastics, and there is no coating layer on the bottom, so the wood powder exposed wet ring Under the environment, it is easy to absorb water and expand. When the core layer continuously absorbs water from the bottom of the plate or the slot, but it can not evaporate in time, it leads to the deformation of the plate to both ends, and the serious even the slot position is pulled to crack.

Due to the same reason as the first problem, the shell burst is unable to resist the expansion force in the case of uneven force, which leads to the crack.

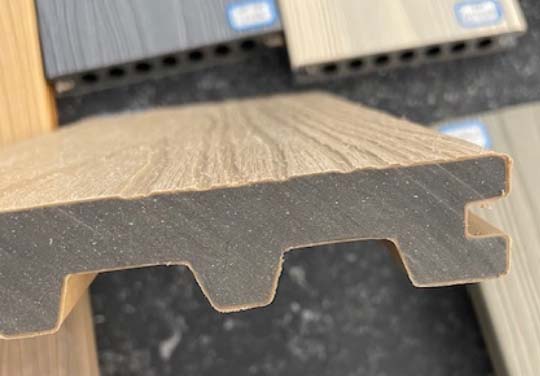

Application of Co-Extruded WPC with intact Shell coating

The first kind of plastic wood has a 360 degree complete coating layer, which can provide full protection for the core layer, including the small position of the chuck, which can resist the effects of harsh environment, moisture, ultraviolet radiation, fungi and bacteria. Take Meisin-surmounted co-extruded wood board as an example, this plastic wood has 360-degree full-protection hard cladding. The core layer is made of wood flour PE plastics and additives, and the coating layer is made of advanced engineering plastics and special additives. The coating has a very low water absorption rate to effectively prevent water from entering the core layer, the plate does not rot, do not crack, do not moldy or long fungi, longer life. High strength coating is more resistant to stains and scratches No need to brush paint, so that the plate as new, basically no maintenance, save money and time.

Laboratory Test of Co-Extruded Wpc and the first Generation of plastic Wood products

1:Stain test

Step: pour black ink on the plate, wipe off half of the stains, clean the surface with clear water, wipe the surface dry. It can be found that there is no color residue or infiltration in the co-extruded wood; the first generation of wood ink residue, and infiltrated into the plate.

2:Scratch test

According to FLTM BO 162-01 test standard, use 1mm needle, on the plate with different strength of 8N to 20N. It can be found that there are still no obvious scratches in the 20 N strength, and the first generation plastic wood has already shown scratches at the intensity of 8N.

3:Wear resistance test

According to the test standard ASTM D4060. Use 750 g weight, 60 rpm rate, a total of 1000 rpm. It can be found that there are only slight abrasions in the co-extruded wood with 23 mg of powder chips, and the first generation of wood has serious wear marks, the surface texture is worn off, and 81 mg of powder chips are worn out.

UV test minimum 3000 hours, observed and recorded every 500 hours. The records are as follows: Co-extruded wood takes 500h Delta E: 0.65-1.25 co-extruded wood, passes through 1000 hours Delta E: 0.92-1.41 co-extruded wood, passes through 1500 hours Delta E: 1.45-1.63 co-extruded wood, passes through 2000 hours of Delta E: 2.55-3.54 co-extruded wood, passes 3000 hours of Delta E: 2.55-3.54 co-extruded wood. E: 2.72-3.75 can be found, Through QUV After 3000 hours of experiment, there was no visible color difference (Delta E < 4. 0).

Boiling test steps: first put the test sample into a container filled with water, the water surface submerges the test template above 5mm; then open the heating device of the test container and raise to 100 ℃ within 0.5 hours; after each test period, Take the plate from the container and record the test time from 100 ℃ to 100 ℃. Repeat the above steps the next day. After 80 hours or more of boiling test, it can be found that after 90 hours of boiling, the coextrusion layer and core layer are still firmly bonded, no breakage or burst; some fully wrapped co-extruded wood after boiling 15 hours after boiling The coextrusion layer and core layer burst, the surface explodes 2 30mm, the core layer hole of hollow plate explodes in 2 places, the length is 3-5mm, some fully wrapped co-extruded wood appear coextrusion layer and core layer separation after boiling for 41 hours, the groove surface layer is stratified 2-3mm; Some notched slotted co-extruded wood had delamination and core layer cracking after boiling for 18.5 hours. The core material in the slotted area had cracked 2-4mm, and there were 3 delamination sites with a length of 2-5 mm. The color and surface treatment of co-extruded wood not only have strong durability, but also play an important role in the growth of market. At present, the United States The new co-extruded wood already has 12 colors and continues to increase. In surface treatment, co-extruded wood can make a more natural and realistic wood texture, welcomed by the market.

We believe that the future development of co-extruded wood has the following characteristics: the adhesion between the coextrusion layer and the core layer is stronger, and after at least 80 hours of boiling test there is no damage; the coextrusion layer covers the core layer at 360 degrees. In order to completely resist the erosion of water / UV / bacteria; the color of the coextrusion layer is more durable, at least 3000 hours after QUV test, the Delta E is less than 4.0; the scratch resistance and wear resistance degree meet the normal wear requirements of furniture, That is: the five-finger scratch test passed the 1mm needle 20N test; the color is more colorful, extending the indoor floor color to Outdoor, color is no longer single and out of the factory characteristics. Co extruded wood to throw away “too plastic” baggage, surface treatment is more realistic and natural texture of solid wood, so that look and feel more and more close to solid wood.

if you need wpc co-extruded wpc decking , pls send email to Admin@hanmingwpc.com
